3D model

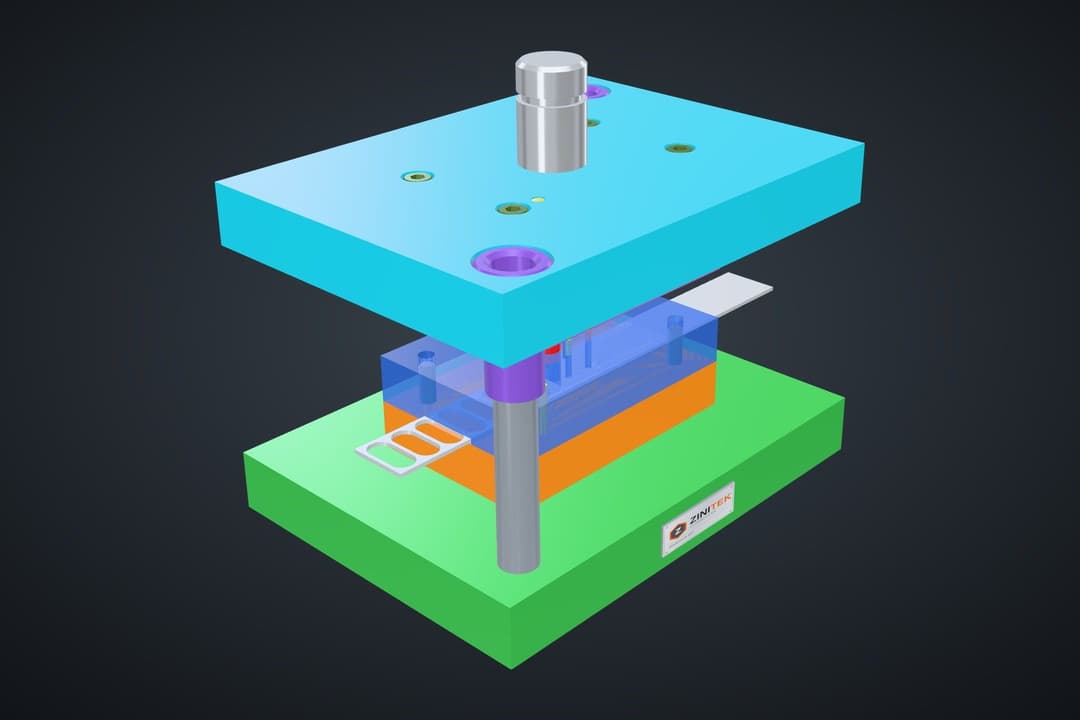

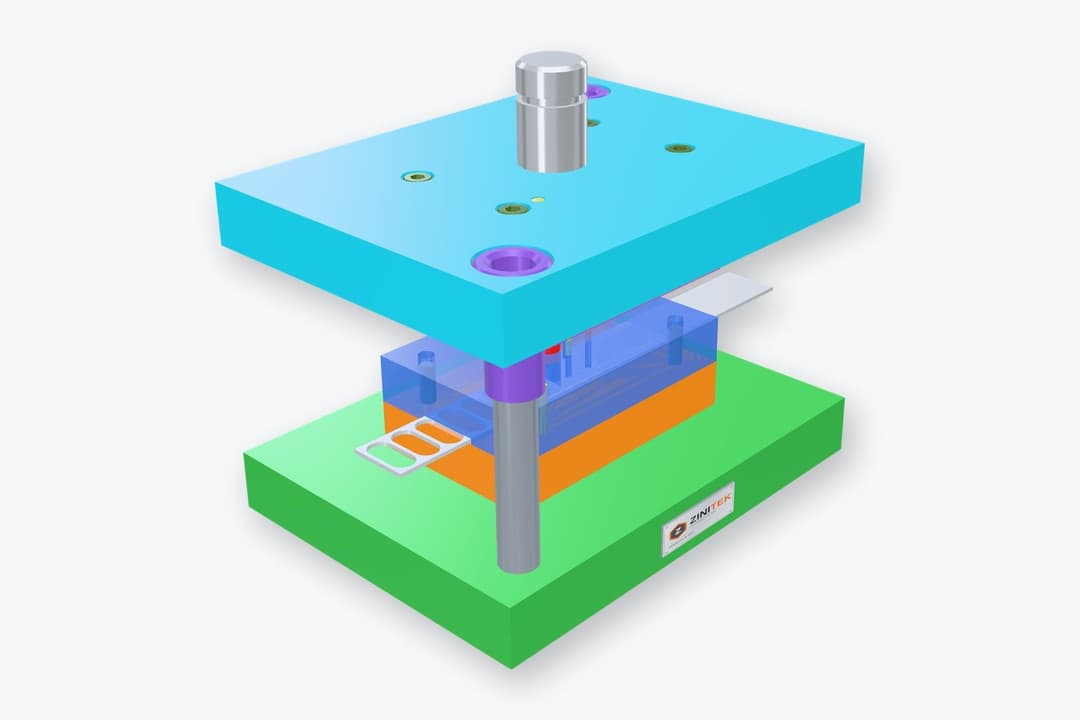

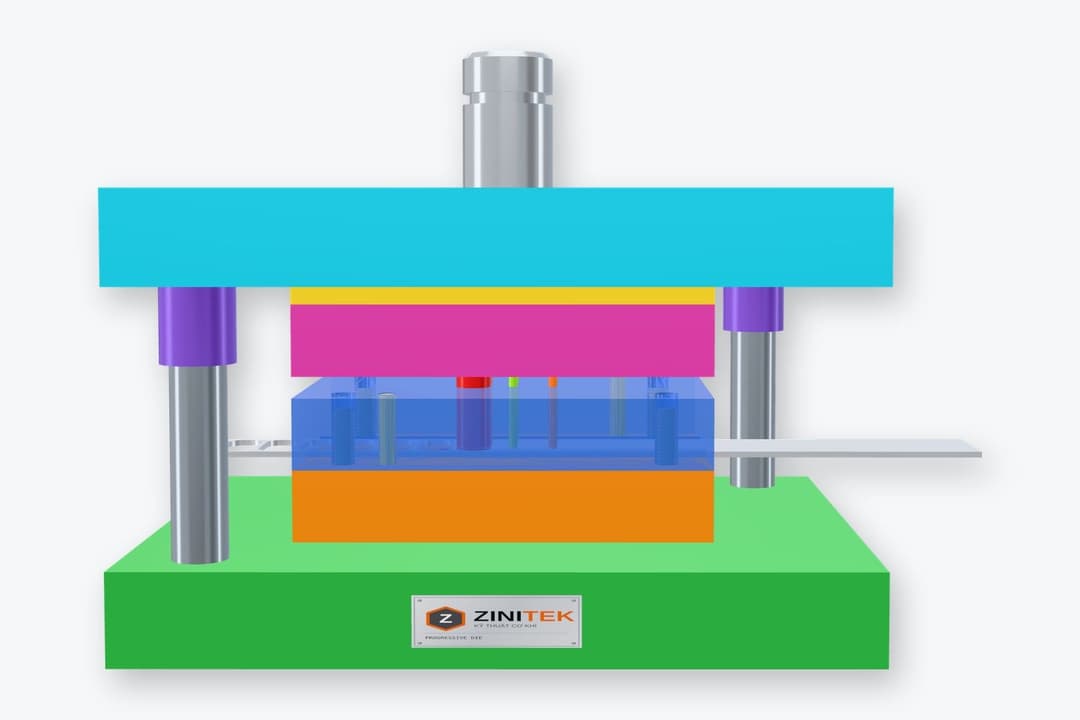

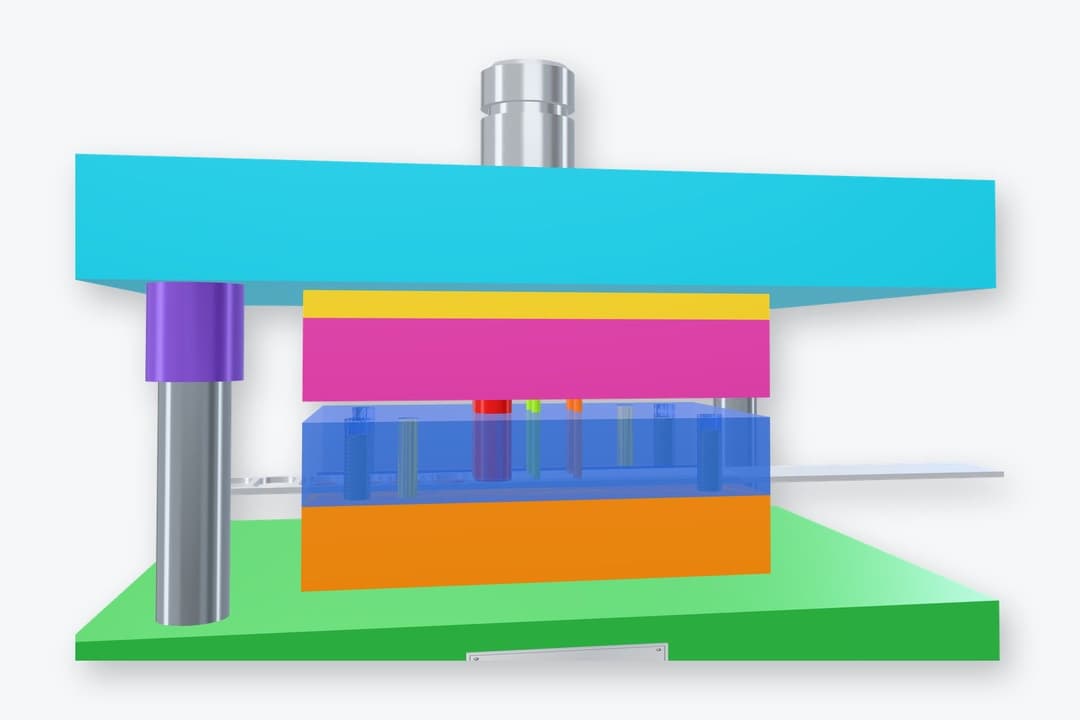

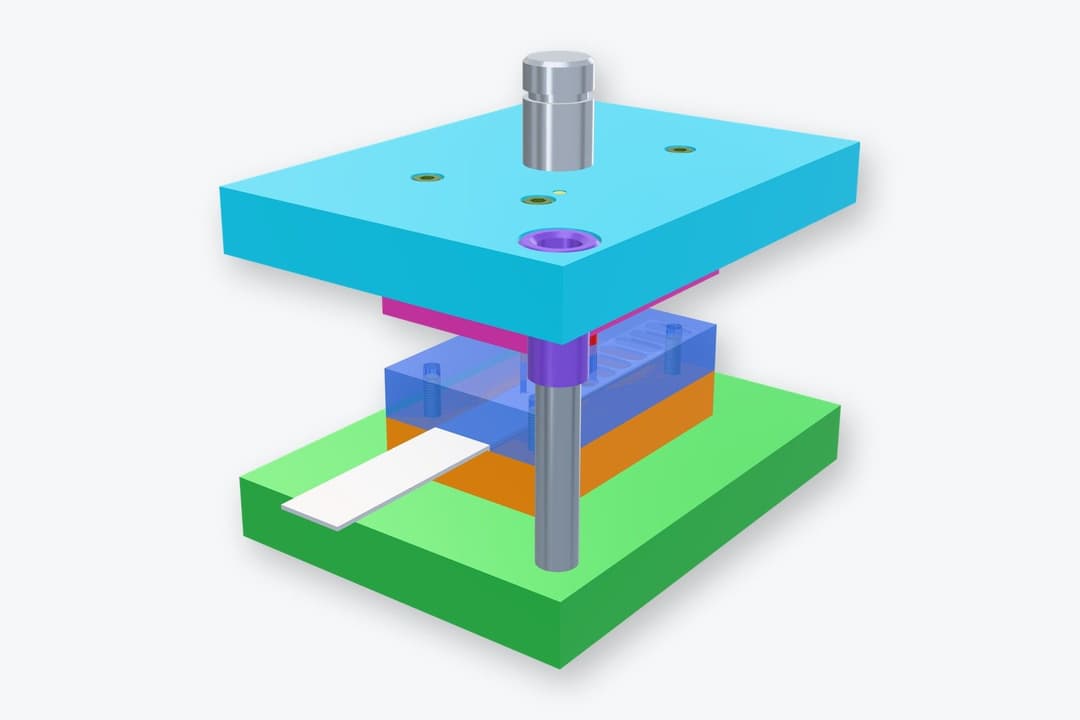

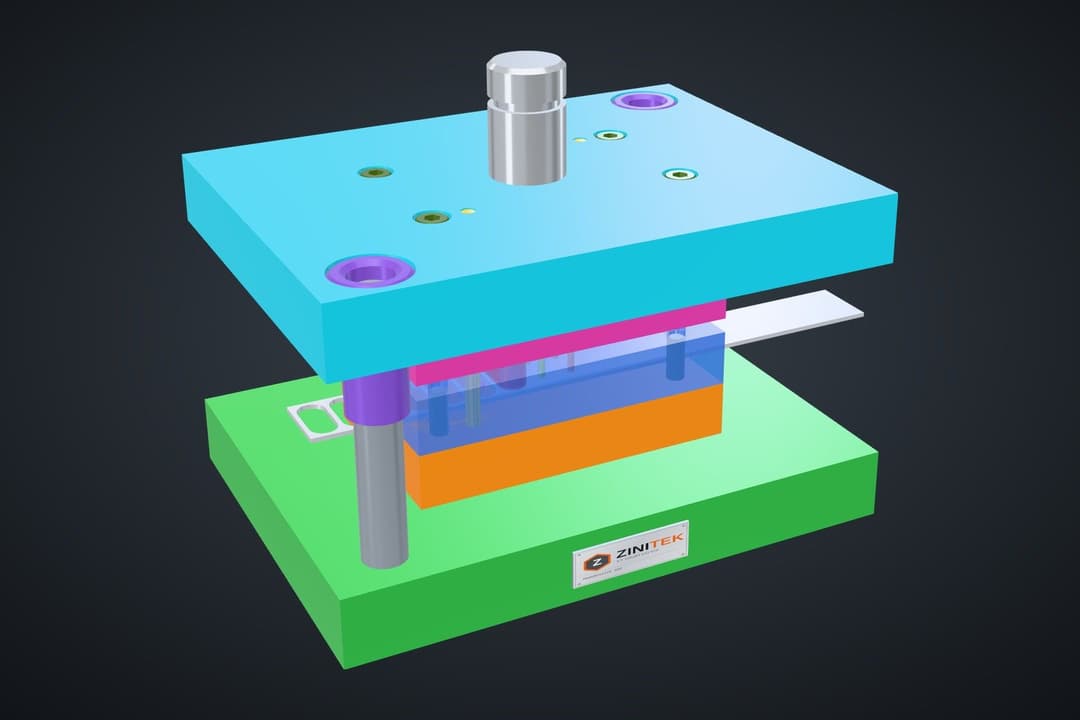

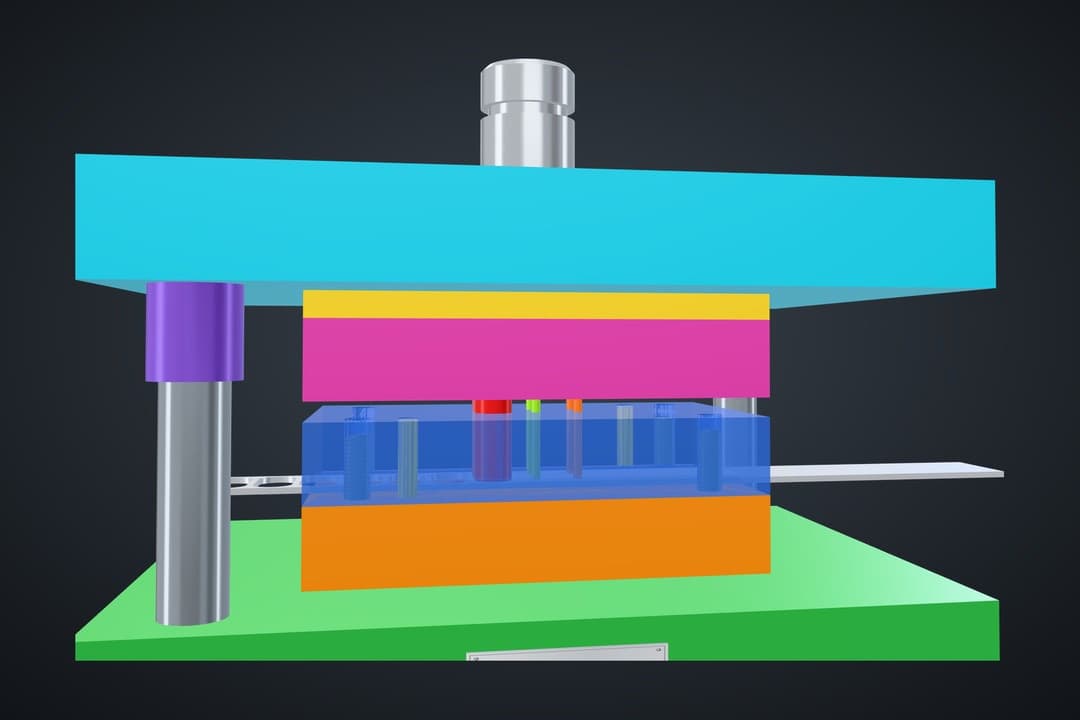

Progressive die for a 2 mm steel link plate: the view-only 3D model shows the upper and lower die halves, the fixed stripper (drawn see-through so the punches and strip inside stay visible), the guiding system, and the open–close motion with the strip feed.
Main design

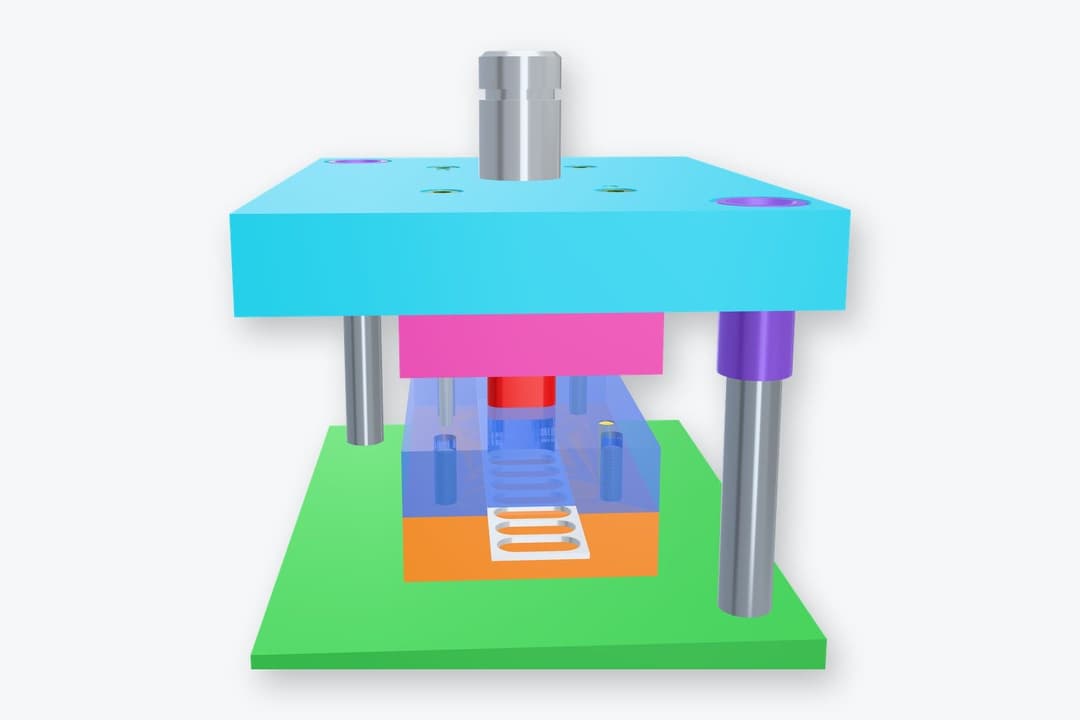

Two-station strip layout at a 14 mm pitch: pierce two Ø3 holes, re-register the strip on pilots, then blank the 12 × 27 mm part; parts and slugs drop through the openings in the die shoe. Fixed stripper bolted to the die plate: it forms the 31 mm strip channel, guides the punches over the full stroke and strips the strip off the punches as the die opens.
