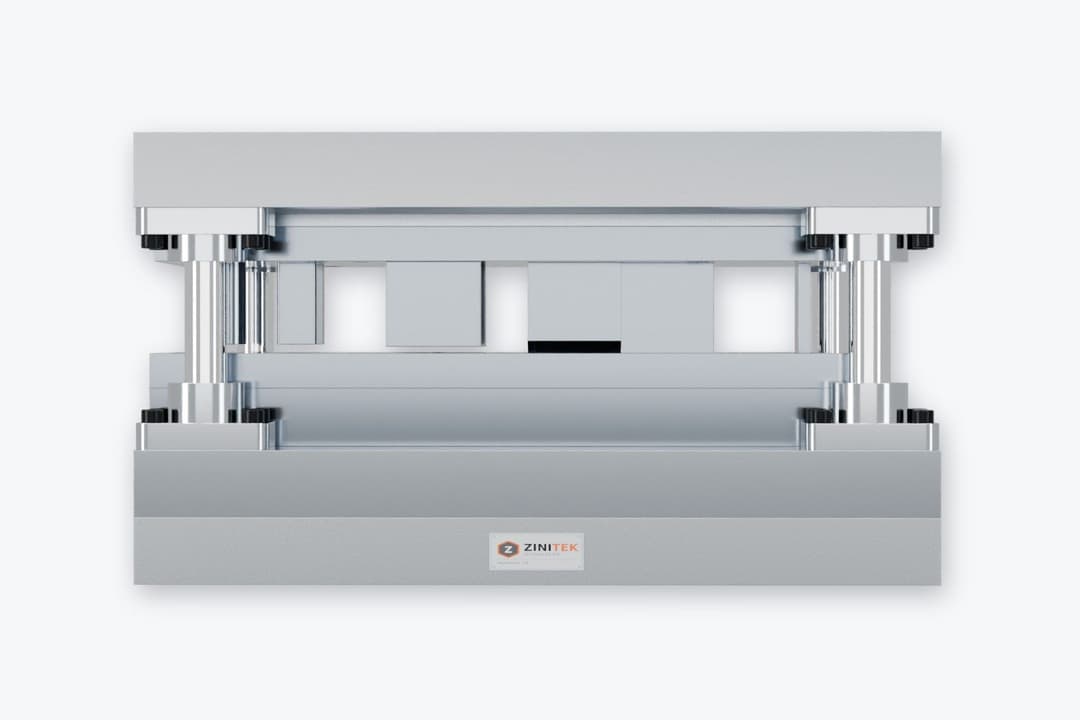

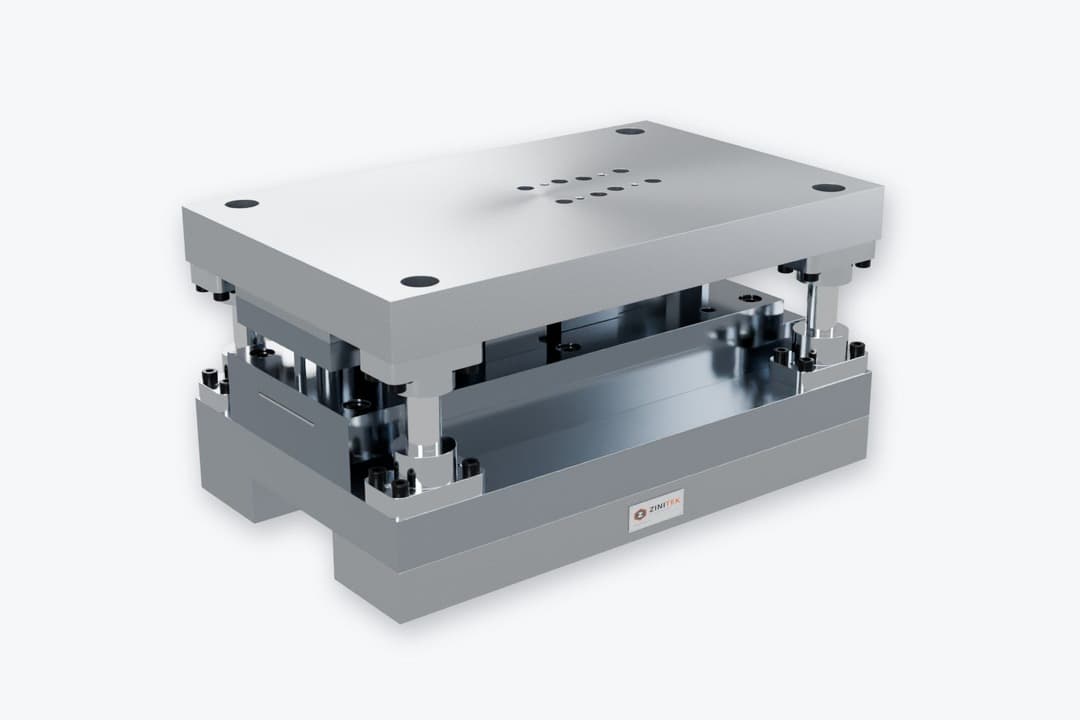

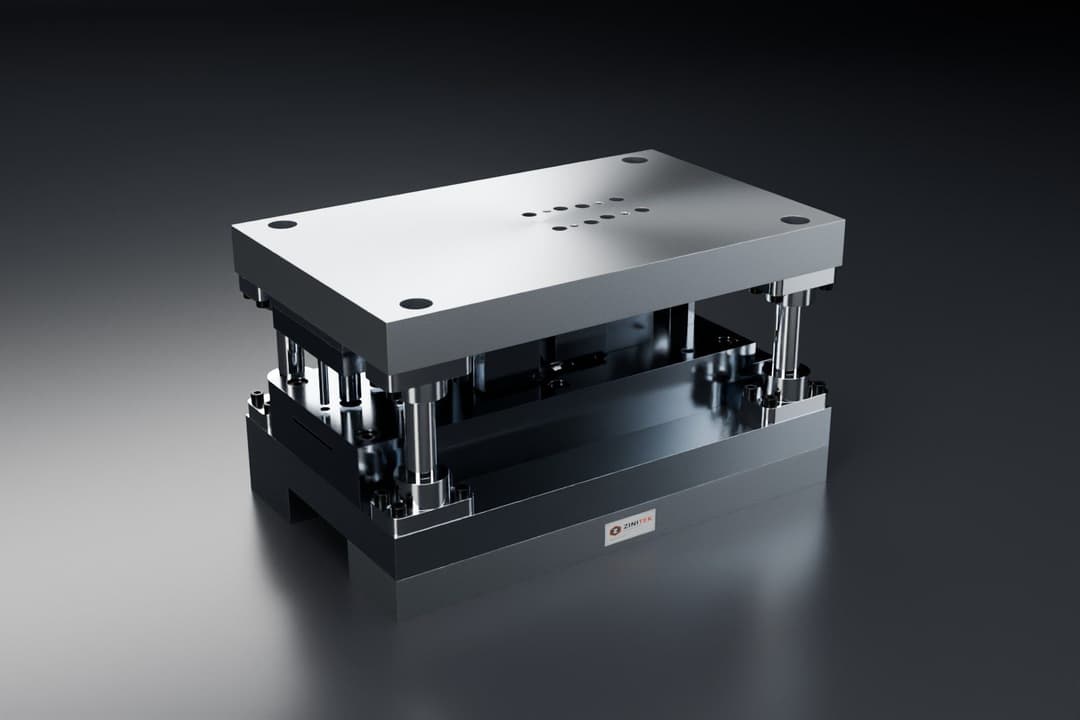

Progressive Die for a Hook Bracket: the view-only 3D model shows the upper half, lower half, guiding system and strip layout, with the opening–closing motion and the strip feed.
Main construction
Seven 74 mm steps: pilot-hole piercing, contour notching on both sides, forming, then parting off the hook at the last station.
