3D model

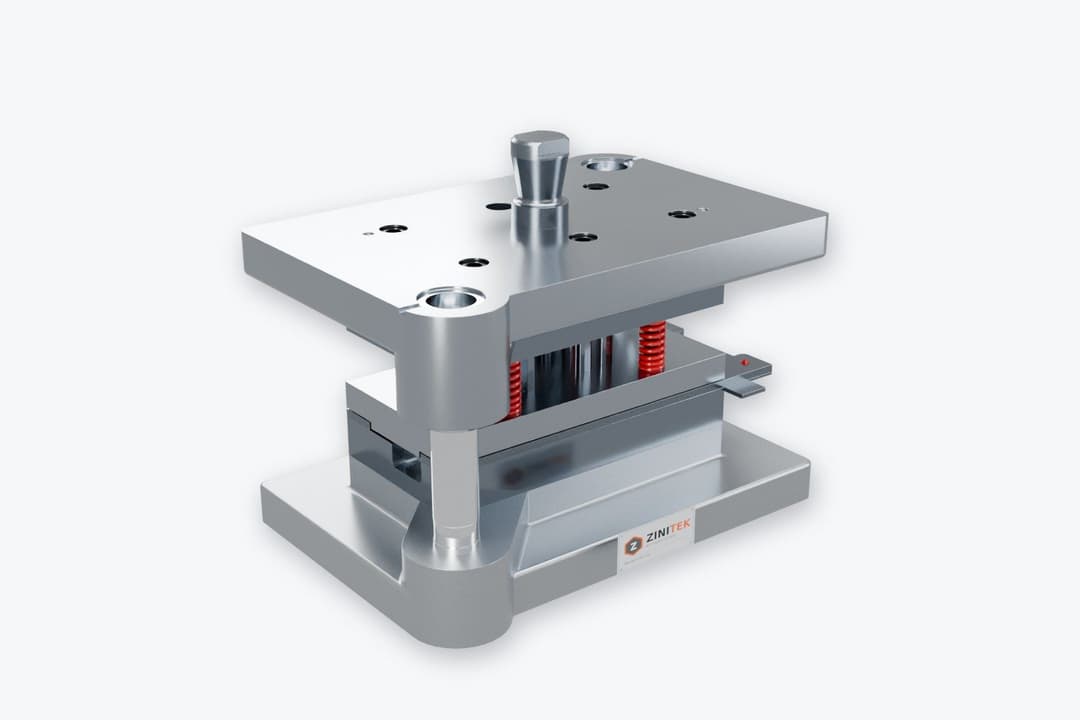

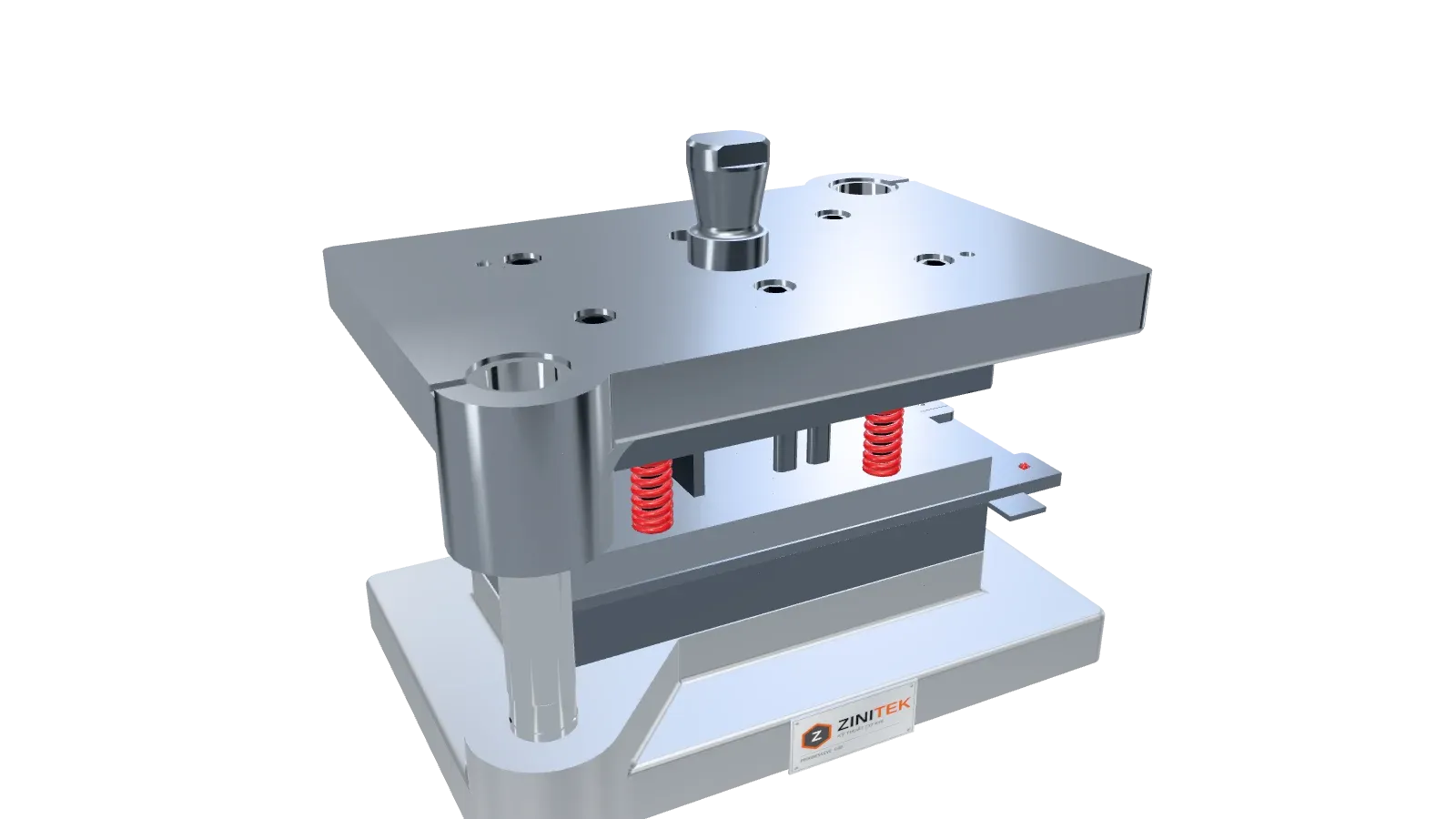

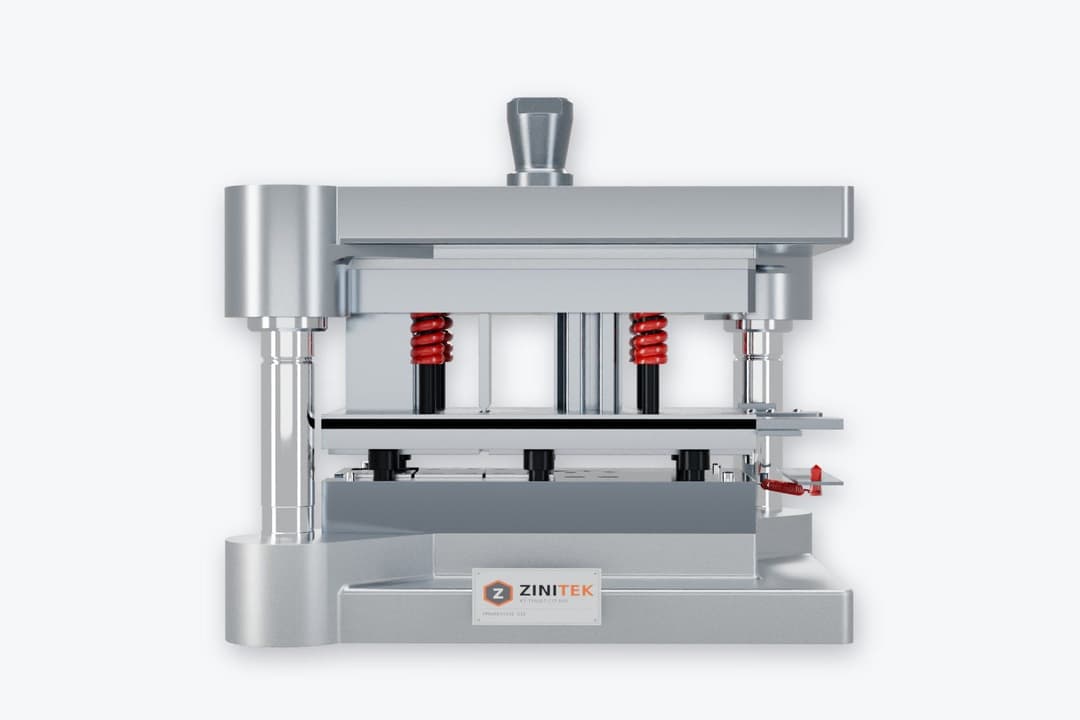

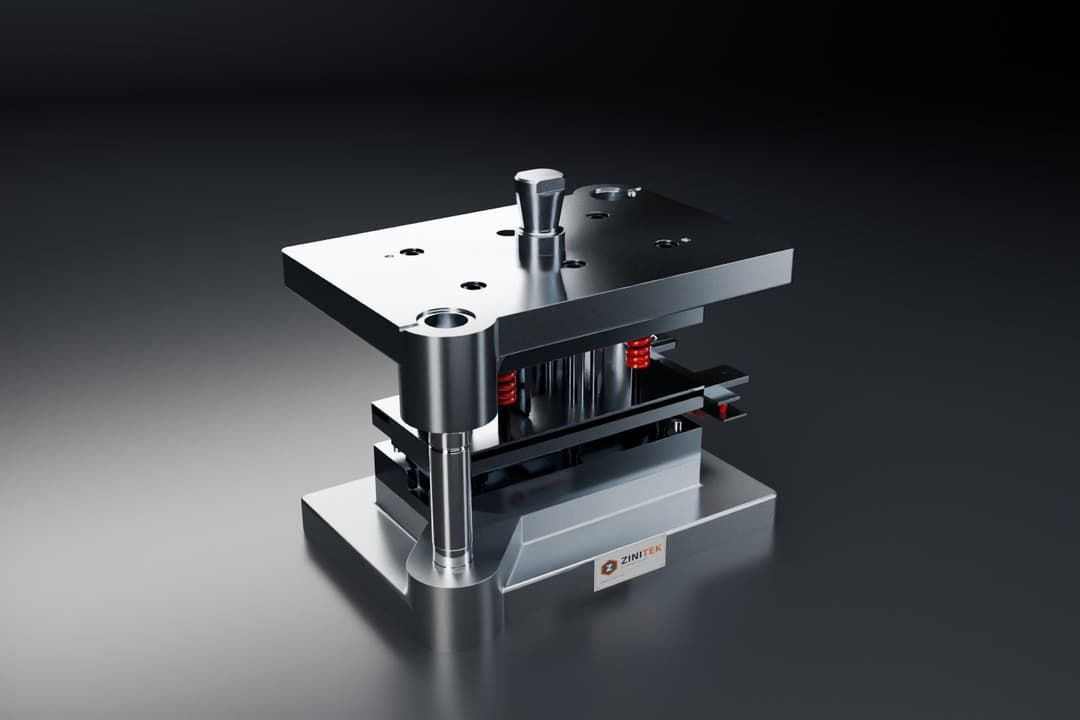

Pierce and Bend Progressive Die for a Sheet Part: the view-only 3D model shows the upper half, lower half, guiding system and strip layout, with the opening–closing motion and the strip feed.
Main construction
Three stations in sequence: round and oval piercing, form slitting, then bending and cut-off of the finished part at a 42 mm pitch.
Discuss a die for your part
Send a drawing or sample with material, thickness, volume and press data, and ZINITEK will discuss the design and manufacturing approach.
