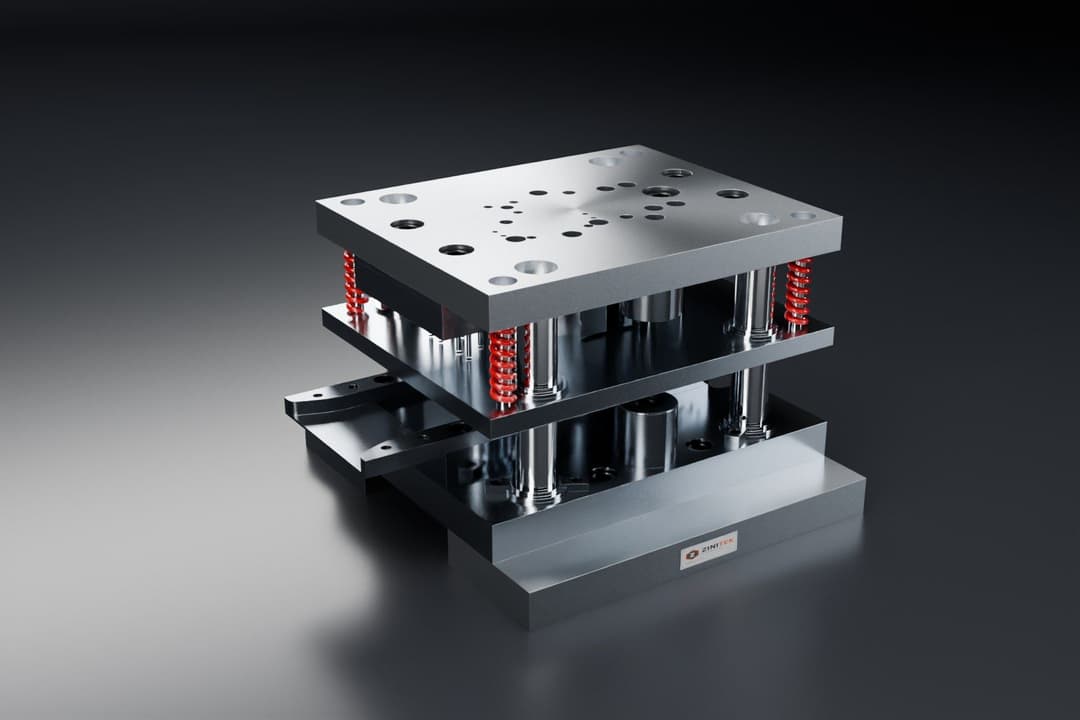

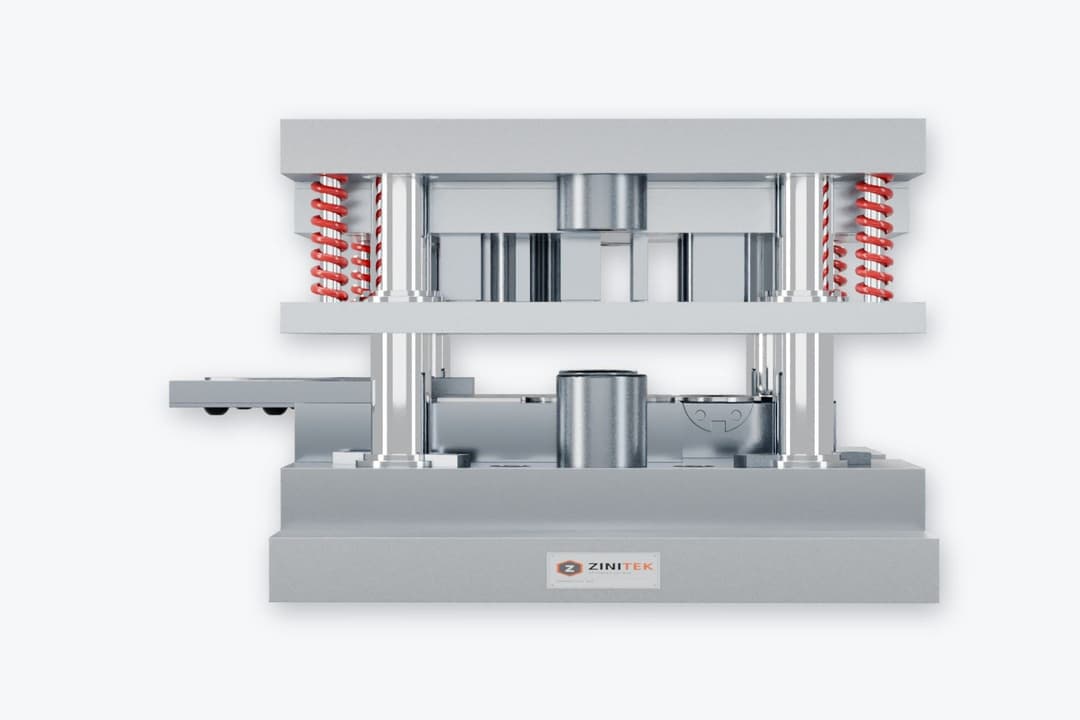

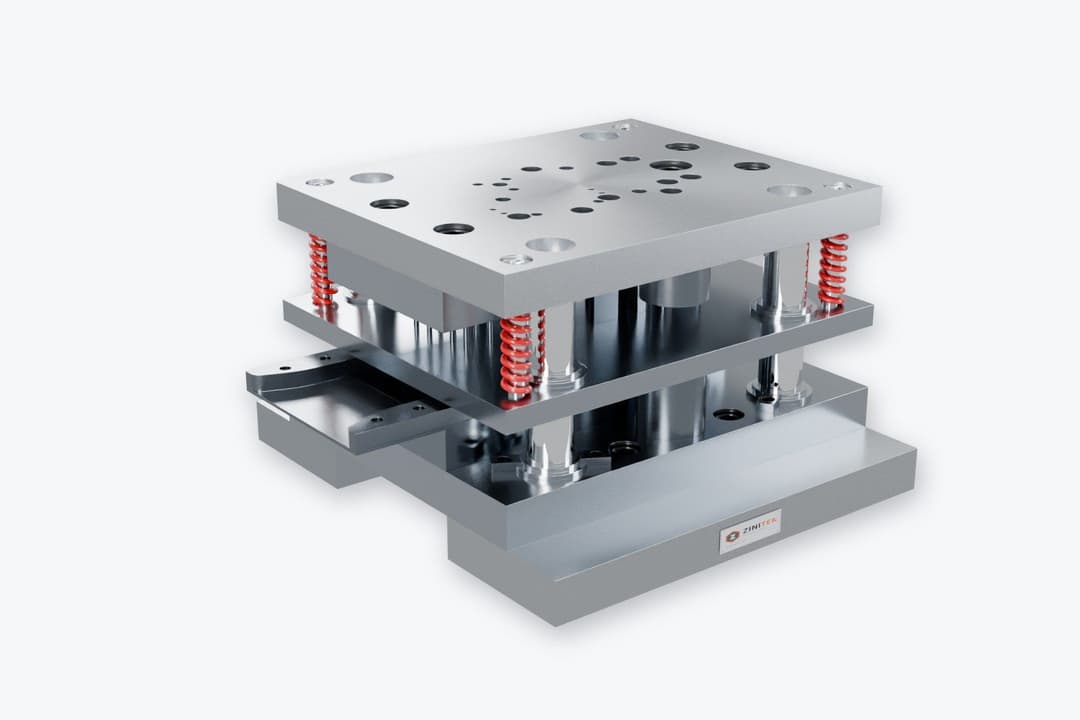

Bending Progressive Die for 3 mm Steel Parts: the view-only 3D model shows the upper half, lower half, guiding system and strip layout, with the opening–closing motion and the strip feed.
Main construction
Piercing punches sit in the first stations and inserted bending blocks in the later ones; the spring stripper runs on its own spring guide pins.
Discuss a die for your part
Send a drawing or sample with material, thickness, volume and press data, and ZINITEK will discuss the design and manufacturing approach.
